NA6000 4K multi-image mosaic processor, splicer, switcher

Inputs

u 4 X HDMI 1.3 (2K60) ,

u 2 X HDMI 2.0 (4K60)

Outputs

u 8 X DVI 1.0 (2K60)

Video Processing

u User-defined HDMI input resolution(EDID user-defined)

u In-5, In-6 support HDR10 /HLG

u
Input video signal dynamic range”limit ” turn to”full ”. Implement

”limit range” video display more black on gray and more

bright on highlight

u 4 layers multi images display, include two 2K60 and two 4K60 layers

u Seamless switching between layer signal source

u 4 layers size, position,overlay and sequence can be adjusted freely

u Supports layer image input crop

u Layer overlay fade in fade out switching to top or bottom

u Layer frame color, sickness on/off setup

u Layer image quality adjustment, brightness, bias and color

gamut conversion

u 8 DVI outputs, user-defined output resolution

Each output setup size and position freely, any crop, flexibly realize

various regular or irregular LED construction and assembly

u Preset 12 display modes: DM-1 to DM12, display mode copy and

 backup. Seamless switching between display modes

u Convenient and efficient panel button operation setup

u One key to freeze image, one key to black LED screen

u LAN, USB and RS232 adjust and control port, RS232 serial port control protocol. USB firmware update

Applications

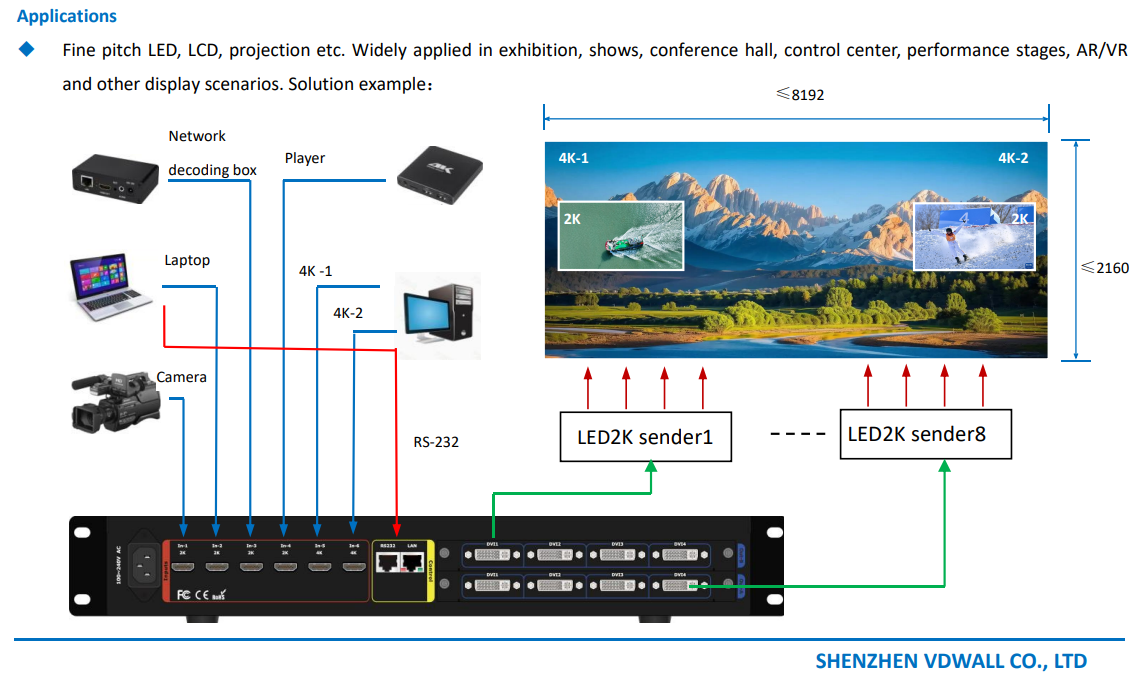

u Fine pitch LED, LCD, projection etc. Widely applied in exhibition, shows, conference hall, control center, performance stages, AR/VR and other display scenarios.
