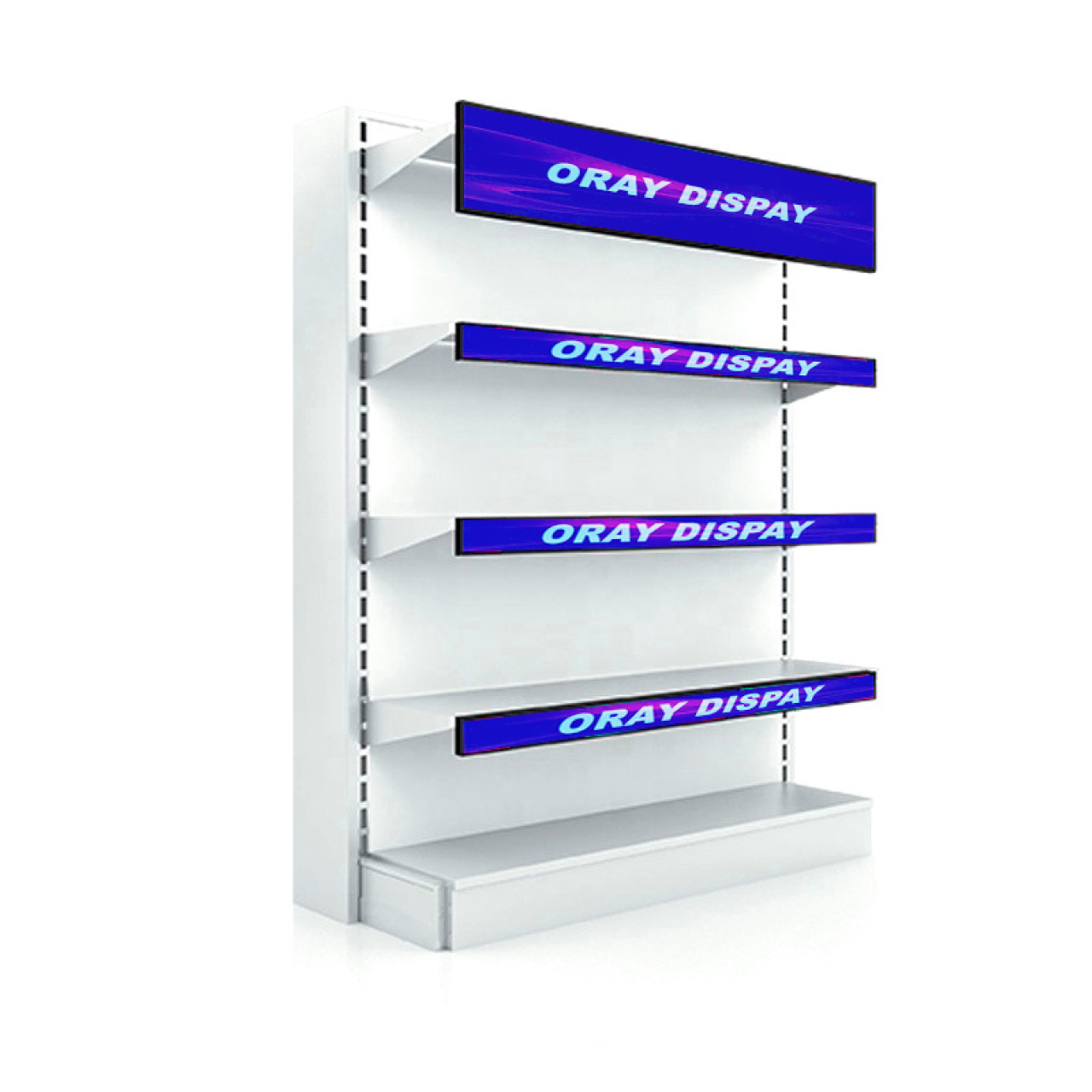

Bar lcd Display/ Digital shelf edge display

Size: 23.1"

Active Area 585.216(H)*48.1584(V)

Resolution 1920(V)x158(H)

Brightness 600 cd/m²

Backlight WLED

Lifespan 30,000 Hours

Viewing Angle 89/89/89/89 (Min.)(CR≥10)

Contrast 1,000:1

Frequency 60 Hz

Display color 16.7M

CPU RK3566 Quad Core ARM Cortex-A55, Up to 1.8GHz

RAM 2G

ROM 32G EMMC

Extension Memory Optional: Max extension TF Card 64G

Networks Wifi 2.4G，

Interface Micro USB x1, TF card slot x1 , Type-C (DC 12V)

OS Android 11

Power Consumption ≤18W

Input supply AC 100-240V(50/60Hz) /DC 12V

Dimension 597.2*61.8*15mm

N.W: 0.65KG

Packing Dimension (5pcs/CTN) 820*300*140mm

G.W: 5 KGS

Operating Temperature 0° C ~ 45° C

Storage Temperature -20° C ~ 60° C

Certificate CE ,FCC Available

Warranty 1 YEAR

Standard Power adapter, Mounting bracket, OTG cable

Optional NA

Optional CMS

Multiple Zones, Background Image, Scrolling Text

Message, Static Text, Editable Background Colours,

Editable
